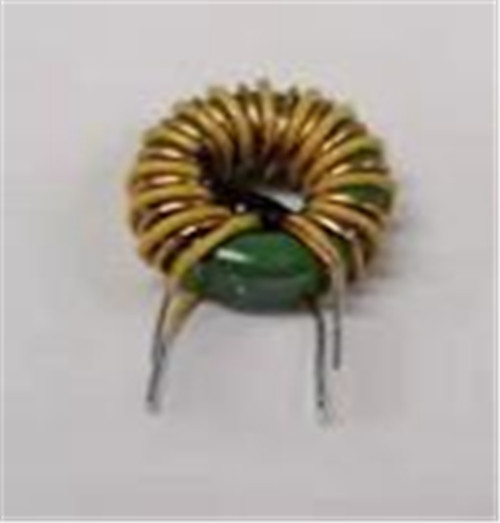

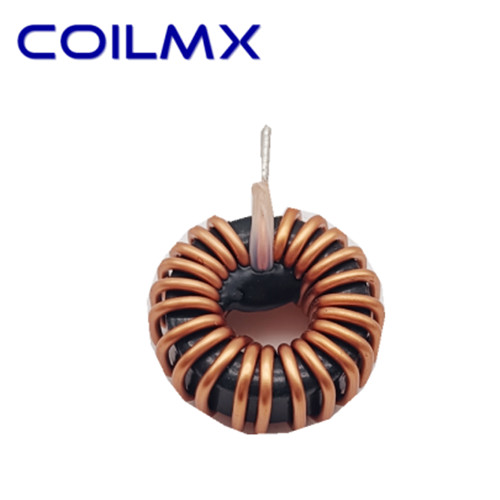

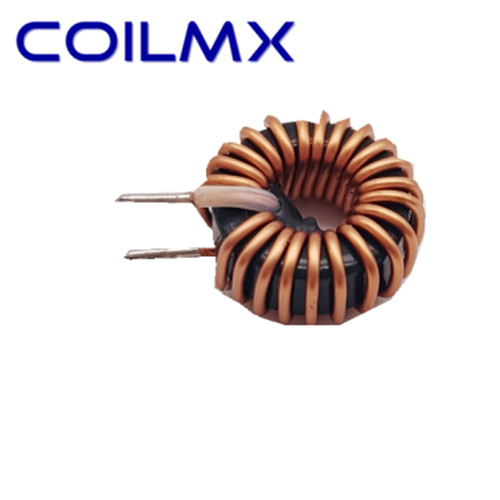

customized high current toroidal power inductor Circular Inductor

Product Detail

Product Tags

Product Video

1. MODEL NO: MT953-102Y-2P-P5-L-X-X

2. Size: please see the details as below

CUSTOMER	MODEL NO.	MT953-102Y-2P-P5- L-X-X	REVISION		A/1
FILE NO.	PART NO.		DATE		2022.02.16

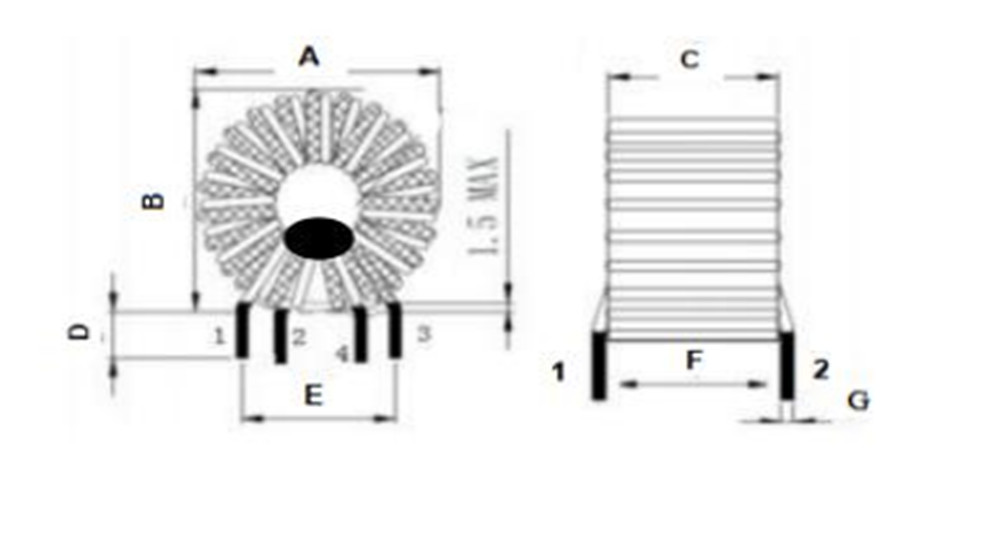

1.PRODUCT DIMENSION				UNIT:mm
				A	13.0Max
				B	11.0Max
				C	6.0Max
				D	5.0±1.0
				E	5.0Ref
				F	4.0Ref
				G	0.35±0.05

2. ELECTRICAL REQUIREMENTS

PARAMETER	SPECIFICATION	CONDITION	TEST INSTRUMENTS
L(mH)	1mH MIN	1KHz/0.3V	MICROTEST 6377
DCR(mΩ)	45mΩMAX	At 25℃	TH2512A

3. MATERIAL LIST

ITEM	MATERIAL	SUPPLIER
CORE	T 953 AL：＞6.0	TENG CI
WIRE	2UEW / TEX-E 0.352P13.5 TS Ref	TAI YI
SOLDER	TIN-Sn99.95	QIAN DAO

Application

(1) Power supplies, Switching circuits.

(2) EMI/RFI chokes.

(3) SCR and triac controls

customized high current toroidal power inductor Circular Inductor-01 (1)

Features

(1) Cost effective design.

(2) ultra high current rating.

SORT	ITEM	A	B	C	D	E	F	G
PRODUCT& DIMENSION	SPEC	13.0Max	11.0Max	6.0Max	5.0±1.0	5.0Ref	4.0Ref	0.35±0.05
	1	10.64	9.82	4.80	4.76	4.97	4.05	0.34
	2	10.58	9.58	4.79	5.05	5.02	4.01	0.35
	3	10.34	9.60	4.82	5.10	5.12	3.98	0.33
	4	10.52	9.71	4.68	5.00	4.94	3.89	0.34
	5	10.50	9.80	4.65	4.98	4.89	4.10	0.35
	X	10.52	9.70	4.75	4.98	4.99	4.01	0.34
	R	0.30	0.24	0.17	0.34	0.23	0.21	0.02
ELECTRICAL& REQUIREME NTS	ITEM	L(mH)	DCR(mΩ)					SHAPE:
ELECTRICAL& REQUIREME NTS	SPEC	1mH MIN	45mΩMAX

Packaging Details

1. 300pcs/polybag ,90000pcs/ctn

2. the outside box specification: 370*370*165mm;

3. Customized Packaging is available.

Trade Terms

1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.

Sales manager giving advice application form document, considering mortgage loan offer for car and house insurance

Shipment

We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)
