Power Inductor Flat Wire Coil Magnetically Crossover Inductor

Product Detail

Product Tags

1. MODEL NO: MTP2915S-6R8M

2. Size: please see the details as below

CUSTOMER	MODEL NO.	MTP2915S-6R8M	REVISION		A/1
FILE NO.	PART NO.		DATE		2022.11.23

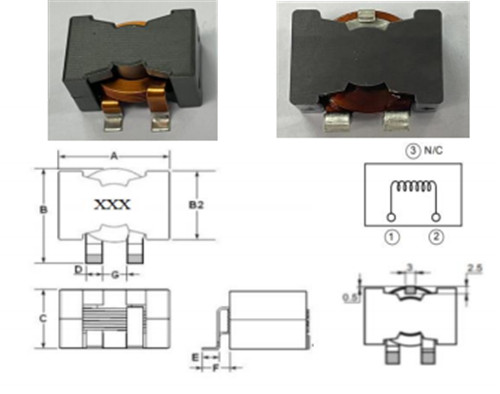

1.PRODUCT DIMENSION				UNIT:mm

CUSTOMER	MODEL NO.	MTP2915S-6R8M	REVISION		A/1
FILE NO.	PART NO.		DATE		2022.11.23
1.PRODUCT DIMENSION				UNIT:mm
				A	28MAX
				B	28.5MAX
				C	15.5MAX
				D	4.0±0.05
				E	4.5±0.5
				F	6.0REF
				G	6.2REF

2.ELECTRICAL REQUIREMENTS

PARAMETER	SPECIFICATION	CONDITION	TEST INSTRUMENTS
L(uH)	6.8± 20%	100KHz/0.25V	MICROTEST 6377
DCR(mΩ)	2.5MAX	At 25℃	TH2512A
I sat(A)	36A TYP L0A*80%	100KHz/0.25V	MICROTEST 6377+6220
I rms(A)	30A TYP △T≤40℃	100KHz/0.25V	MICROTEST 6377+6220

3.MATERIAL LIST

ITEM	MATERIAL	SUPPLIER
CORE	DR:(P47)27197.5*B12	YUEFENG/DONGYANGGUANG/TIANT ONG
WIRE	(0.84.05.75ts)	TAIYI-JIATENG-SONGYE
SOLDER	TIN-Sn99.95	QIANDAO/HONGXINGWEI

CUSTOMER			MODEL NO.		MTP2915S-6R8M		REVISION		A/1
FILE NO.			PART NO.				DATE		2022.11.23
SORT	ITEM	A	B	C	D	E	F	G	H	K
PRODUCT& DIMENSION	SPEC	28MAX	28.5MAX	15.5MAX	4.0±0.05	4.5±0.5	6.0REF	6.2REF
	1	27.56	26.50	15.35	4.02	4.01	5.98	6.25
	2	27.56	26.50	15.34	4.03	4.00	5.99	6.29
	3	27.60	26.56	15.32	4.02	4.01	5.92	6.24
	4	27.56	26.58	15.34	4.03	4.02	5.9	6.25
	5	27.65	26.68	15.36	4.05	4.00	5.9	6.25
	X	27.59	26.56	15.34	4.03	4.01	5.94	6.26	#DIV/0!
	R	0.09	0.18	0.04	0.03	0.02	0.09	0.05	0.00
ELECTRICAL& REQUIREME NTS	ITEM	L(μH)	DCR( mΩ)	I sat(A)	DC BIAS	Irms	SHAPE:
	SPEC	6.8± 20%	2.5MAX	36A TYP L0A*80%	降幅 %	30A TYP △T≤40℃

More details and specification

Working Temperature	-20℃ to +105℃
Storage Humidity	30% to 95%
Test Items	Ø Turns Ø Inductance Ø DC resistance testx Ø Current test Ø Hi-POT
Certifications	ISO9001:2008, ISO14001:2008, UL, CQC
MOQ	1000 pcs
OEM	Acceptable
Sample	Free ,but the shipping should be paid by your side
Sample Time	3-5 working days
Package	EPE foam + export carton, or plastic tray+export carton
Delivery time	about 15 working days against deposit

Application

1. Digital Products:Digital camera ETC
2.Household Appliance:washing machine,air condition,coffee makerETC
3. Security products:Camera,Voice recording equipment,infrared devicesETC
4.Power:Switching power supply, UPS ETC
5.Lighting industrial: LED drivers
6.Auto electronics: Navigator,Data recorder, Car charger ETC
7.Toys:electric toys, remote controller ETC
8.Motors

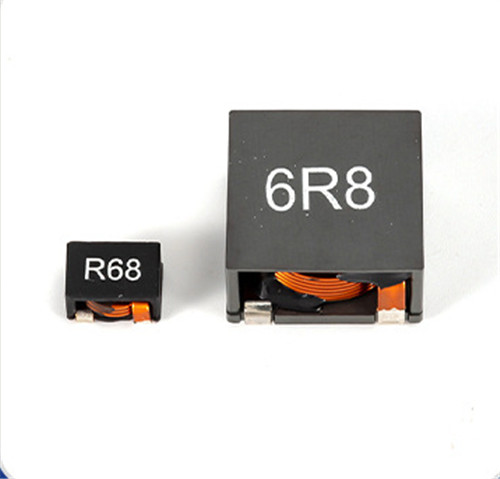

Power Inductor Flat Wire Coil Magnetically Crossover Inductor -01 (3)

Trade Terms

1. Payment:
1) T/T 30% in advance, balanced 70% to be paid before dispatch.
2) L/C.
2. Port of loading: Shenzhen or Hongkong Port.
3. Discounts: offered based on order quantities.
4. Delivery time: 7-30 days according to order quantities.

Sales manager giving advice application form document, considering mortgage loan offer for car and house insurance

Shipment

We ship goods by DHL, UPS, FEDEX, SF, EMS and TNT.
Sample Lead Time is about 3-7 days
Order Lead Time is about 20-30 days.
(If there are products in stock, we can deliver at once after receiving payment.)
